Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

  • 1
  • 2

Brand Name : Winroller

Model Number : Winroller Plastic O Belt Tapered Conveyor Roller With High Load And Lower Noise

Certification : CE,SGS,ISO9001,ROHS,UL

Place of Origin : China Jiangsu

MOQ : 1stick

Price : Contact Us

Payment Terms : TT, L/C

Supply Ability : 500000/year

Delivery Time : 7-15 word days

Packaging Details : Wooden case

Product Name : Plastic O Belt Tapered Conveyor Roller With High Load And Lower Noise

Roller Material : Steel Galvanization Stainless Steel

Linkage Mode : O Belt

Small end diameter : Φ50mm

Vantage : Low noise and high load

Taper : Tube standard taper 3.6° (taper can be customized)

Maximum load : 200kg

Length : Customized

Application : For curve conveyor

Contact Now

Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Function of Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

  • "O" belt drive, groove at the end of the roller
  • The roller is light and has good starting performance
  • Suitable for light load conveying, smooth operation

Remark:
Both galvanized steel and stainless steel tube are available

Application of Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Used for cone-roller type zero-discharge curve conveyor line

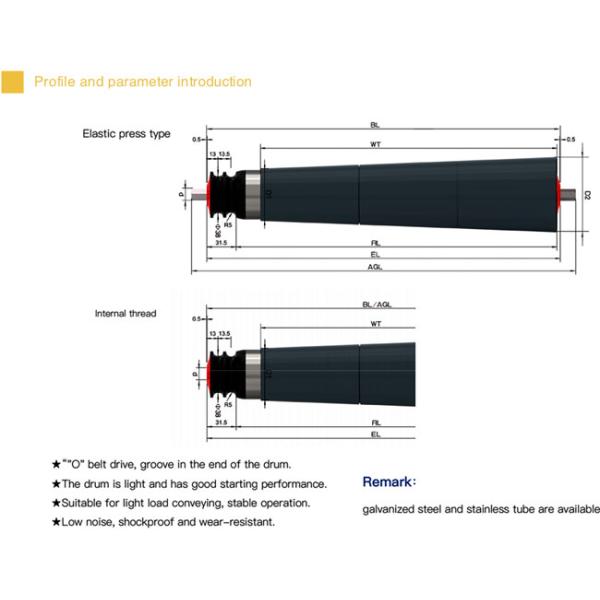

Technical Parameters of Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Plastic O Belt Conveyor Pulley Driven Taper Roller
Pipe diameter and wall thickness Axis center Sleeve length D1 D2
φ50*1.5 11hex,φ12/15 300 φ56 φ74.9
350 φ52.9 φ74.9
400 φ56 φ81.1
450 φ52.9 φ81.1
500 φ56 φ87.4
550 φ52.9 φ87.4
600 φ56 φ93.7
650 φ52.9 φ93.7
700 φ56 φ100
750 φ52.9 φ100
800 φ56 φ106.3
850 φ52.9 φ106.3

Feature Picture of Plastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications

Plastic O Belt Conveyor Pulley Driven Taper Roller For Various ApplicationsPlastic O Belt Conveyor Pulley Driven Taper Roller For Various Applications
